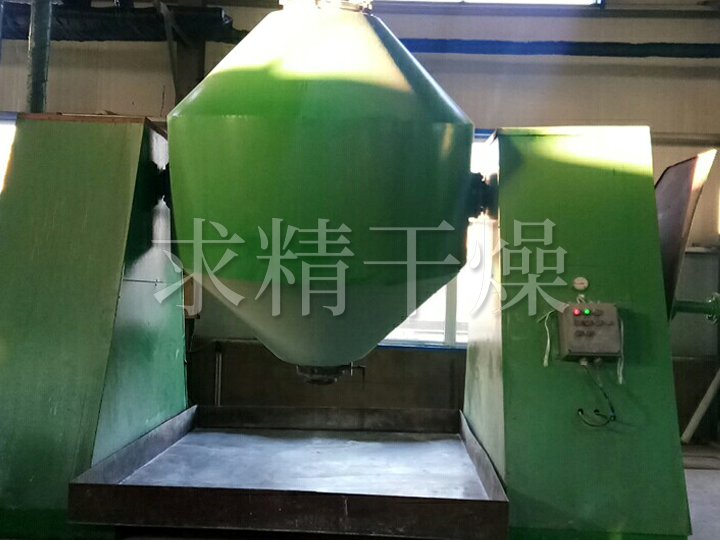

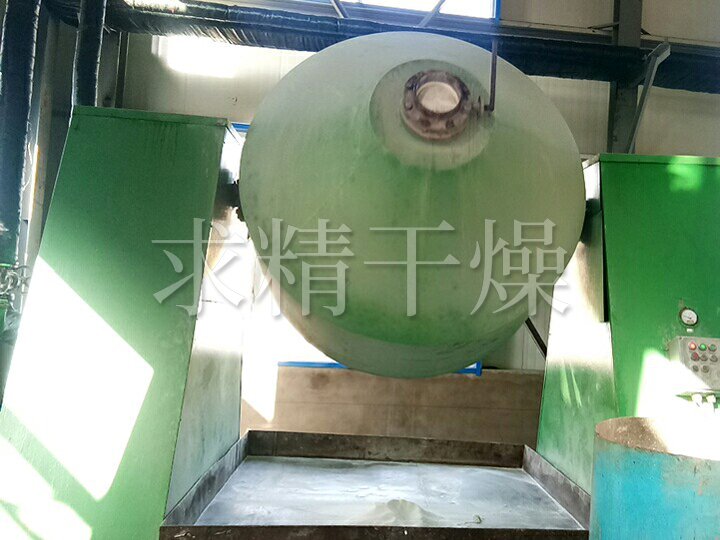

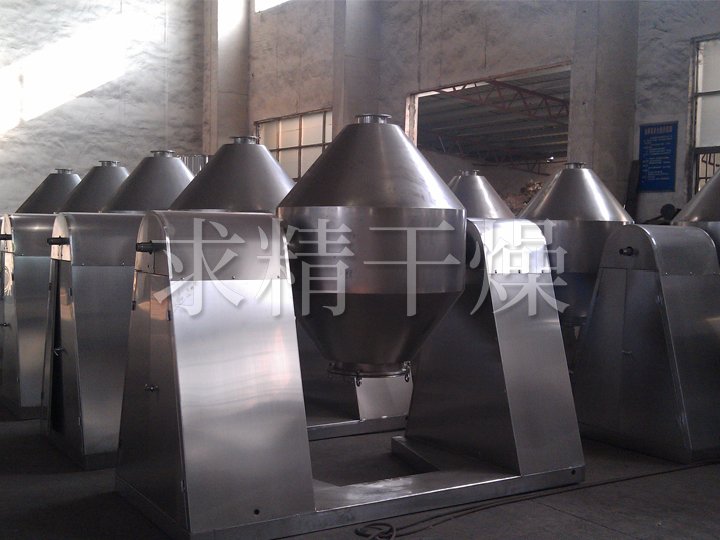

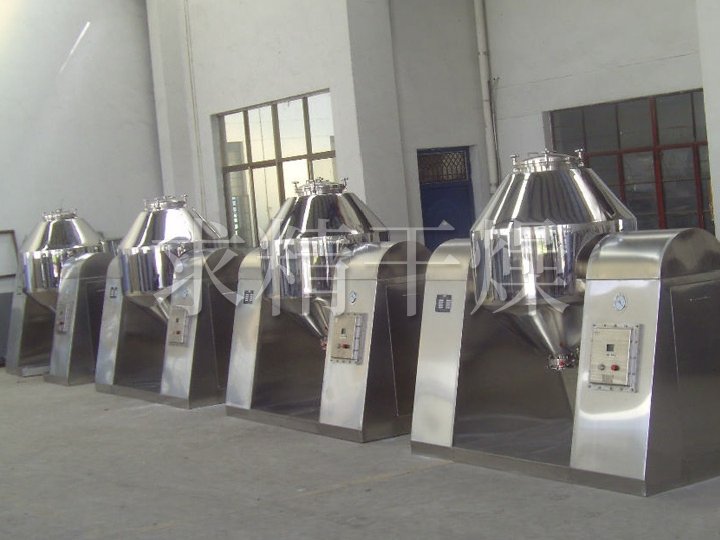

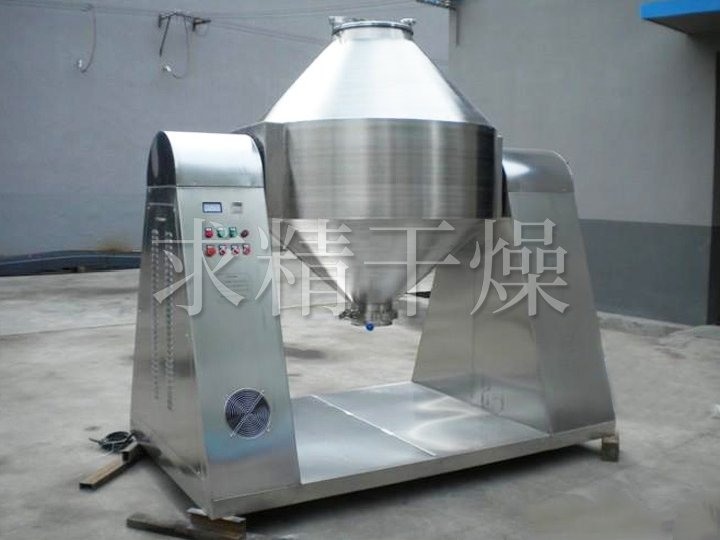

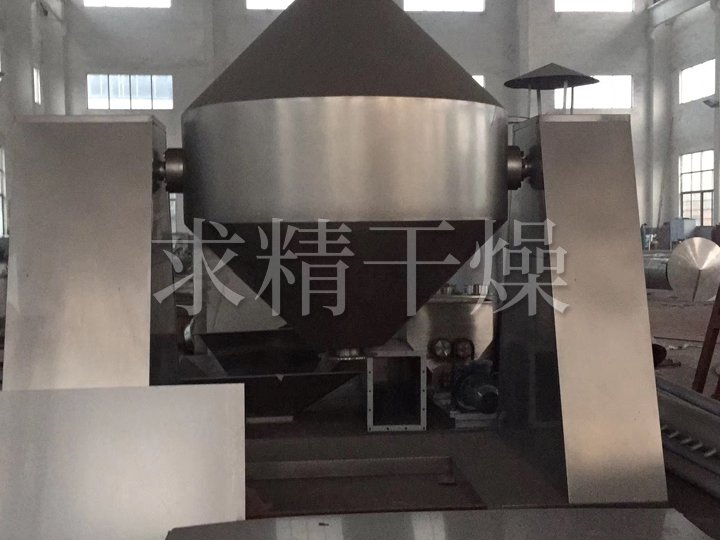

SZG series double cone rotary vacuum dryer

Overview:SZG double-cone vacuum dryer is a new generation drying device developed by our factory in combination with the technology of similar domestic products.

Consulting

product description
SZG double-cone vacuum dryer is a new generation drying device developed by our factory in combination with the technology of similar domestic products. The double-cone vacuum adopts two elastic connection methods of belt and chain, so the equipment runs smoothly. The specially designed process fully reflects the good concentricity of the two shafts. The heat medium and vacuum system adopt reliable mechanical seals or rotary joints. On this basis, we developed SZG-A, which can not only stepless speed regulation, but also constant temperature control.


As a professional drying equipment manufacturer, our products are available from high-temperature heat transfer oil as the heat medium, medium-temperature steam and low-temperature hot water. When drying viscous materials, our factory will specially design a "copy board" mechanism or set up balls in the tank for you.

working principle
◎The heat energy (such as hot water, low pressure steam or heat transfer oil) is passed into the closed interlayer, and the heat is transferred to the dried material through the inner shell.
◎Under the power drive, the tank body rotates slowly, and the materials in the tank are continuously mixed to achieve the purpose of strengthening drying.
◎The material is in a vacuum state, and the vapor pressure drops so that the water (solvent) on the surface of the material reaches a saturated state and evaporates, and it is discharged and recovered by the vacuum pump in time. The water (solvent) inside the material continuously penetrates, evaporates, and discharges to the surface. The three processes are continuously carried out, and the material achieves the purpose of drying in a short time.


Adapt to materials
It is suitable for the concentration, mixing, drying of powder, granular and fiber in chemical, pharmaceutical, food and other industries and materials that require low temperature drying (such as biochemical products, etc.). It is more suitable for drying of easily oxidized, volatile, heat-sensitive, strongly irritating, toxic materials and materials that are not allowed to destroy crystals.

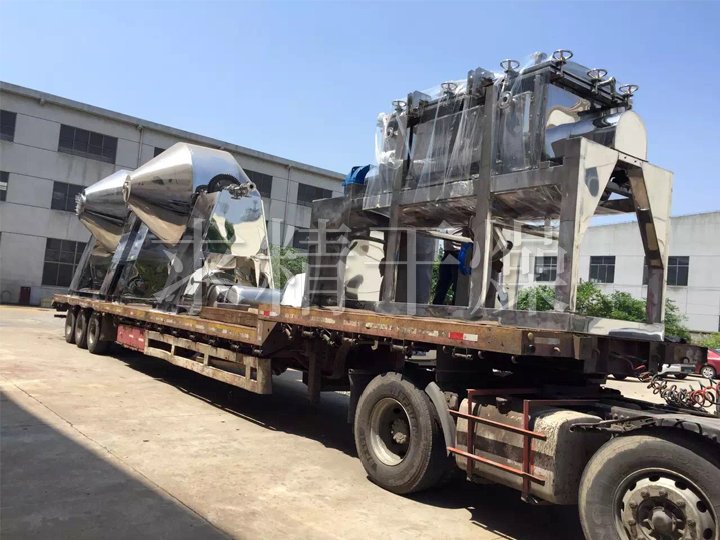

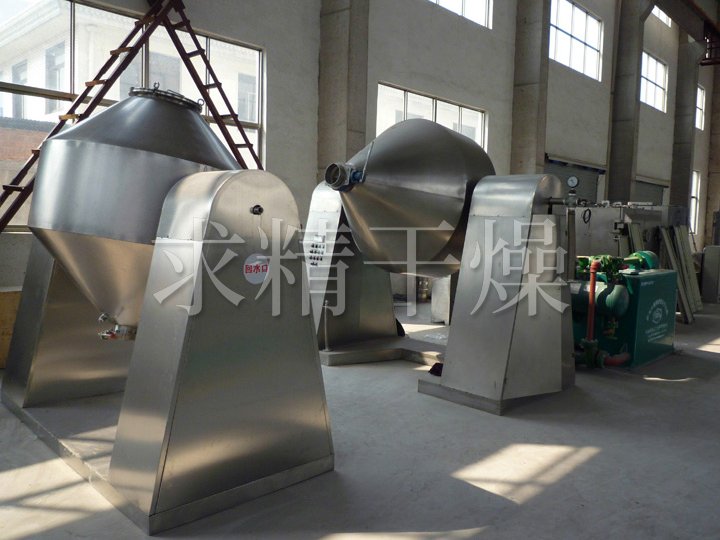

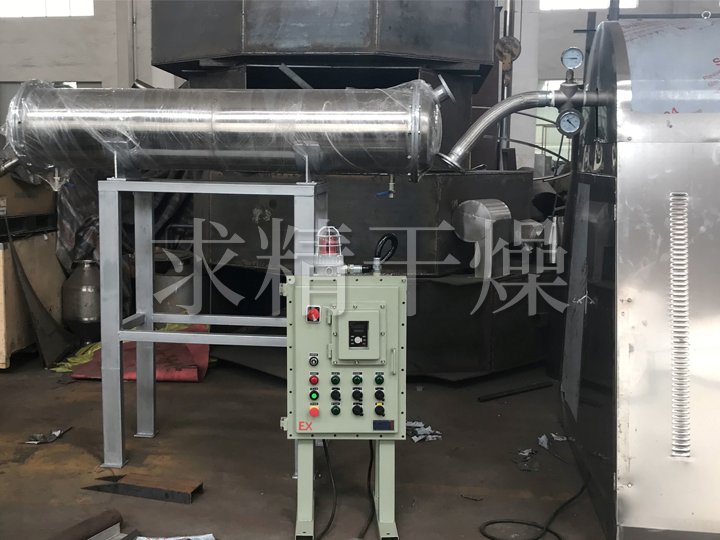

Installation demonstration


双锥回转真空干燥机安装示范


Performance characteristics
◎When oil is heated. Use automatic constant temperature control. Can dry biochemical products
◎With mineral raw materials, the temperature can be between 20~160oC.
◎High thermal efficiency, more than 2 times higher than ordinary oven.
◎Indirect heating. The materials will not be contaminated and meet the requirements of "GMP". The equipment is easy to maintain and operate and easy to clean.

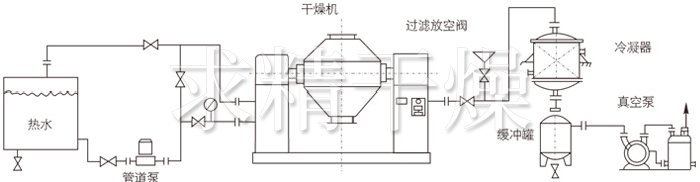

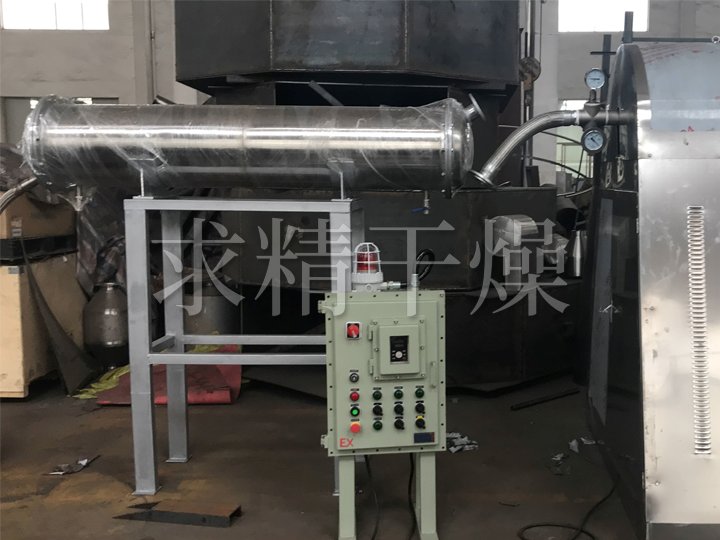

◎Recommended process placement demonstration solvent recovery process placement.

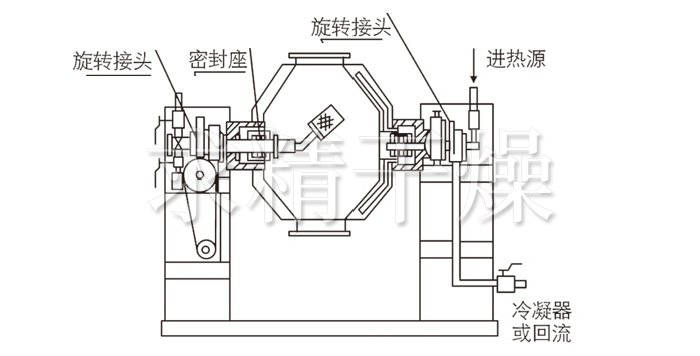

Schematic

双锥回转真空干燥机结构示意图
Technical specifications

Name/Specification 100 350 500 750 1000
Tank volume 100 350 500 750 1000
Loading volume (L) ≤50 ≤175 ≤250 ≤375 ≤500
Heating area (m2) 1.16 2 2.63 3.5 4.61
Rotating speed(rpm) 4 - 6
Motor Power(kw) 0.75 1.1 1.5 2 3
Occupied length × width(mm) 2160×800 2260×800 2350×800 2560×1000 2860×1300
Rotation height(mm) 1750 2100 2250 2490 2800

Design pressure in tank (Mpa)

-0.1-0.15
Jacket design pressure (Mpa) ≤0.3
Operating temperature (oC) Inside the tank≤85  Jacket≤140
When using a condenser, a vacuum pump, 2X-15A 2X-15A 2X-30A 2X-30A 2X-70A
Model, power 2KW 2KW 3KW 3KW 505KW
When the condenser is not used, the vacuum pump, SK-0.4 SK-0.8 SK-0.8 SK-2.7B SK-2.7B
Model, power 1.5KW 2.2KW 2.2KW 4KW 4KW
weight(kg) 800 1100 1200 1500 2800



Name/Specification 1500 2000 3500 4500 5000
Tank volume 1500 2000 3500 4500 5000
Loading volume (L) ≤750 ≤1000 ≤1750 ≤2250 ≤2500
Heating area(m2) 5.58 7.5 11.2 13.1 14.1
Rotating speed (rpm) 4 - 6
Motor Power(kw) 3 4 5.5 7.5 11
Occupied length × width(mm) 3060×1300 3260×1400 3760×1800 3960×2000 4400×2500
Rotation height(mm) 2940 2990 3490 4100 4200

Design pressure in tank (Mpa)

-0.1-0.15
Jacket design pressure (Mpa) ≤0.3
Working temperature (oC) -0.1-0.15
When using a condenser, a vacuum pump, JZJX300-8 JZJX300-4 JZJX600-8 JZJX600-4 JZJX300-4
Model, power 7KW 9.5KW 11KW 20.5KW 22KW
When the condenser is not used, the vacuum pump, SK-3 SK-6 SK-6 SK-9 SK-10
Model, power 5.5KW 11KW 11KW 15KW 18.5KW
weight(kg) 3300 3600 6400 7500 8600

Note: For materials with large changes in volume before and after drying, the loading factor can be appropriately increased or decreased.
