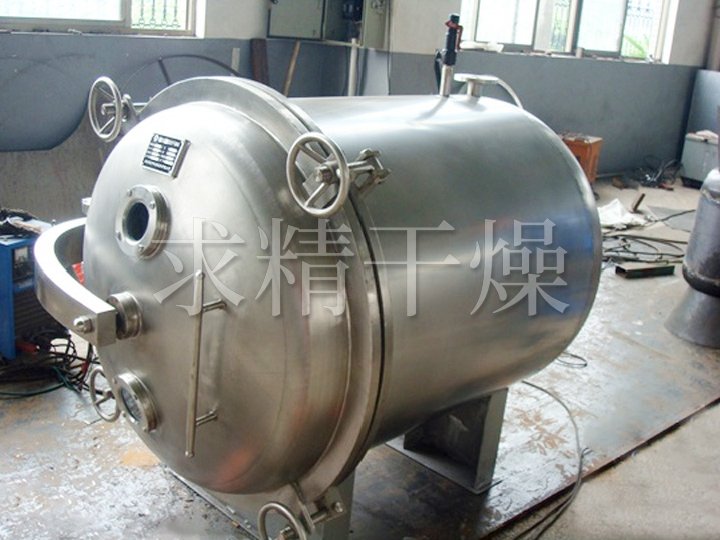

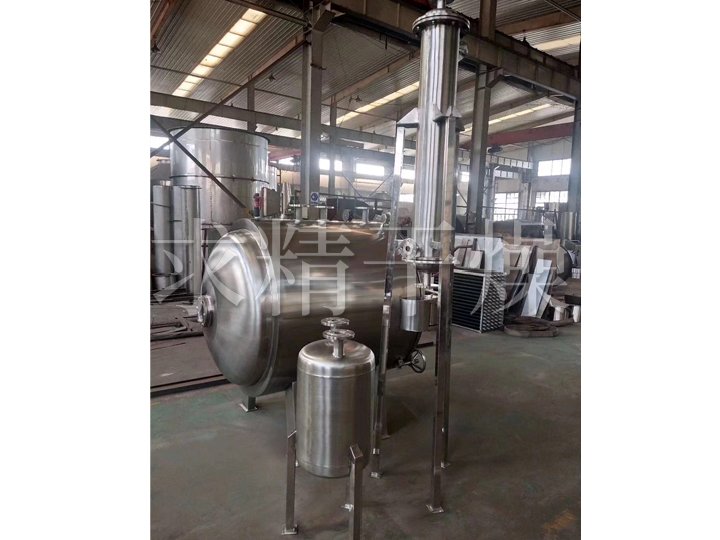

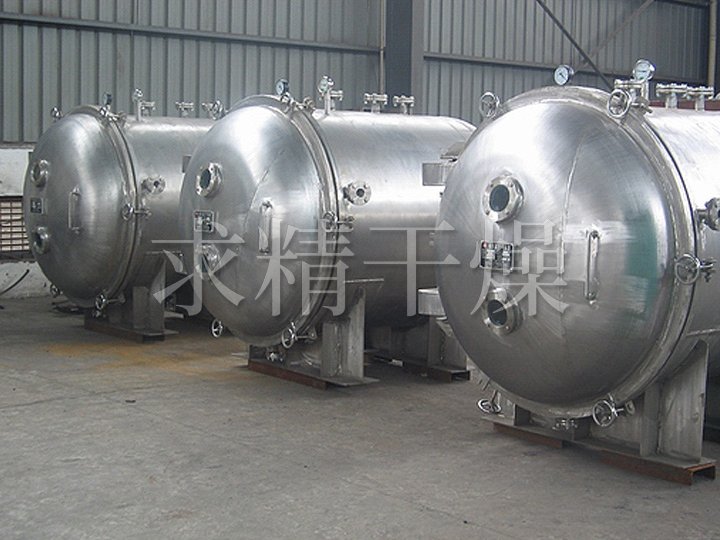

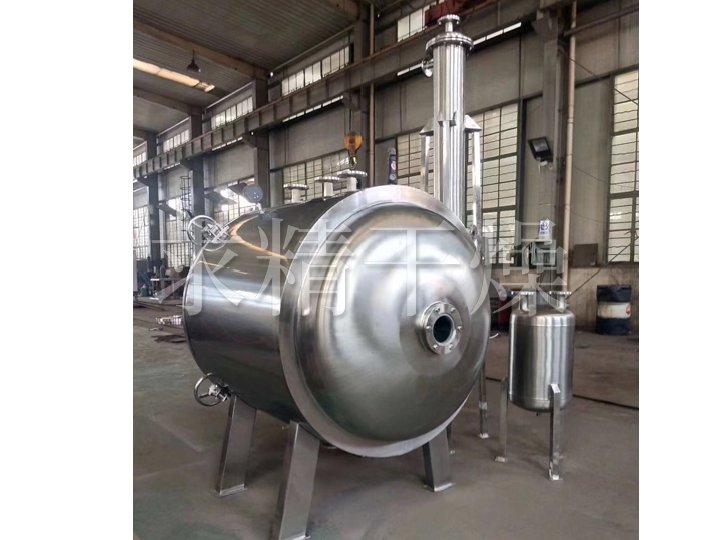

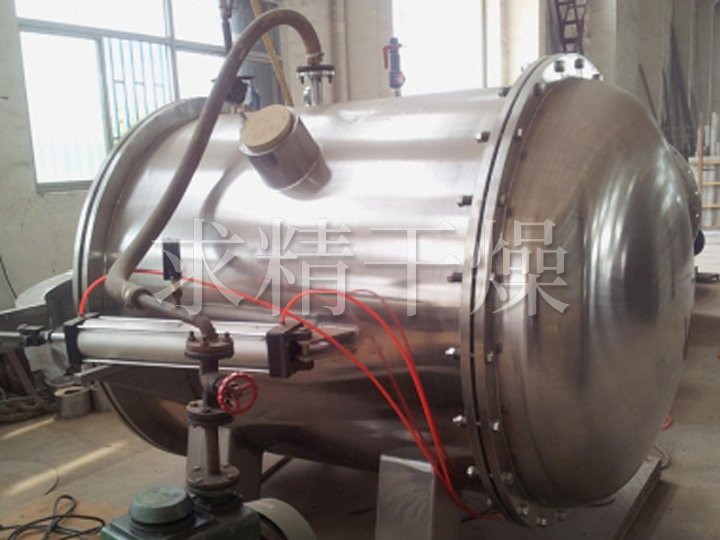

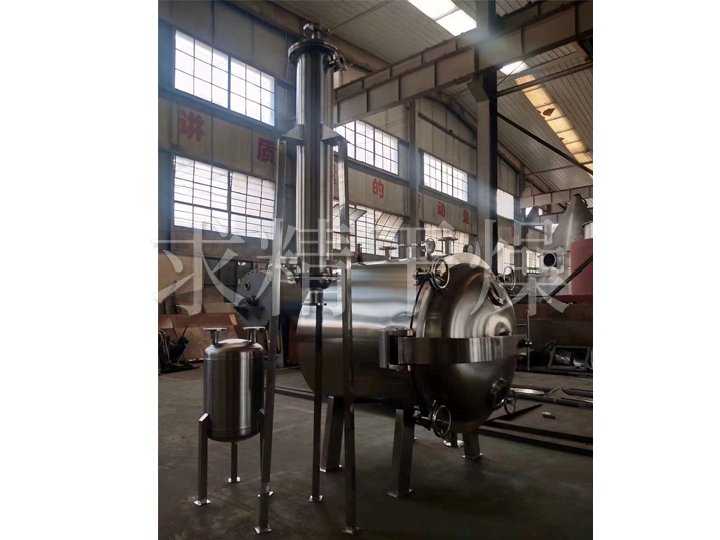

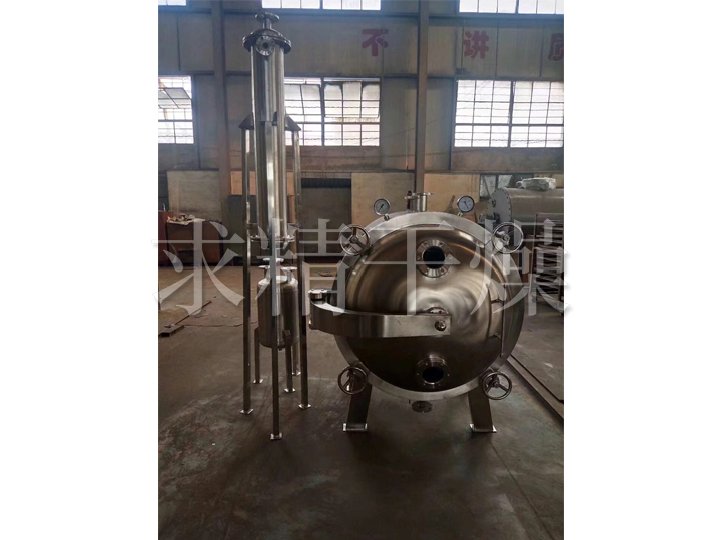

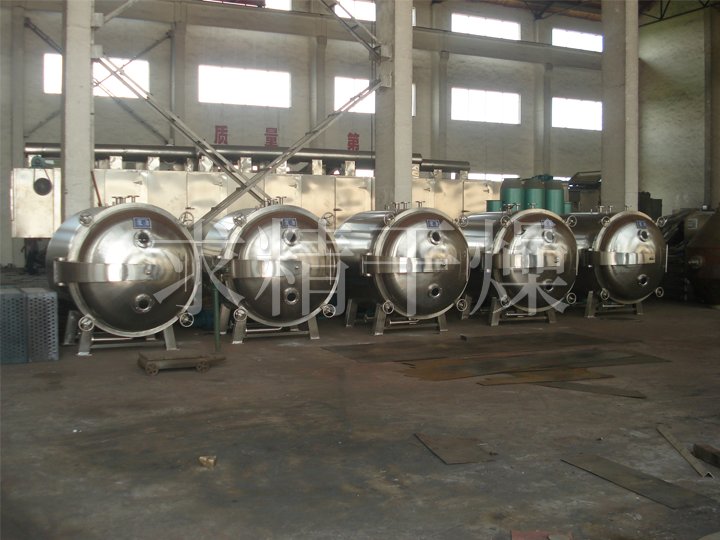

YZG round static vacuum dryer

Overview:The so-called vacuum drying is to heat and dry the dried materials under vacuum conditions. If a vacuum pump is used to extract air and moisture,

Consulting

working principle
The so-called vacuum drying is to heat and dry the dried materials under vacuum conditions. If a vacuum pump is used to extract air and moisture, the drying speed will be accelerated.


Note: If a condenser is used. The solvent in the material can be recovered through the condenser. If the solvent is water, the condenser can be omitted, saving energy investment.


Performance characteristics
◎The boiling point of the material solution decreases under vacuum. Increase the heat transfer driving force of the evaporator. Therefore, the heat transfer area of the evaporator can be saved for a certain amount of heat transfer.
◎The heat source for evaporation operation can be low pressure steam or waste heat steam.
◎The evaporator has less heat loss.
◎It can be disinfected before drying, and there is no impurities in the drying process, which meets GMP requirements.
◎It is a static vacuum dryer. Therefore, the shape of the dried material will not be damaged.


Adapt to materials
Suitable for low-temperature drying of heat-sensitive materials that are easy to decompose, polymerize and deteriorate at high temperatures; it is widely used in the pharmaceutical, chemical, food, and electronics industries.

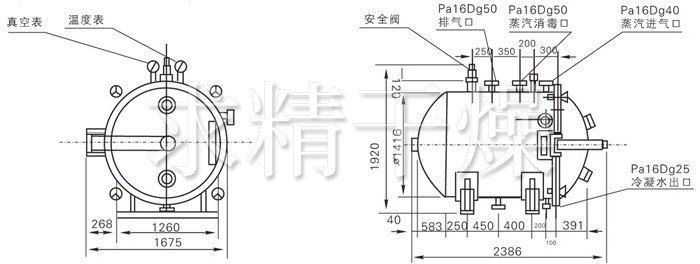

Schematic

圆形静态真空干燥机结构示意图
Technical specifications

Name/Specification YZG-600 YZG-800 YZG-1000 YZG-1400A
Inner size of drying box Ф600×976 Ф800×1247 Ф1000×1527 Ф1400×2054
Outer dimensions of drying box 1135×810×1024 1700×1045×1335 1693×1190×150 2386×1675×1920
Layers of drying rack 4 4 6 8
Distance between layers 82 82 102 102
Baking tray size 310×600×45 520×410×45 520×410×45 460×640×45
Baking plate number 4 8 12 32
Pressure in the drying rack tube ≤0.784 ≤0.784 ≤0.784 ≤0.784
Operating temperature of drying rack 35-150 35-150 35-150 35-150
No-load vacuum in the box -0.09~0.096
At -0.1MPa and heating temperature 110oC, the vaporization rate of water 7.2 7.2 7.2 7.2
When using condenser, vacuum pump model and power 2X-15A / 2KW 2X-30A / 3KW 2X-30A / 3KW 2X-70A / 5.5KW
When the condenser is not used, the vacuum pump model and power SK-0.8 /2.2KW SK-2.7 / 4KW SK-3 /5.5KW SK-6 / 11KW
Drying box weight 250 600 800 1400

Note: The water ring vacuum pump is combined with mechanical booster to increase the vacuum degree.
download Google
◎When ordering, please select a suitable vacuum dryer according to the initial moisture content, final moisture content, temperature, vacuum degree, drying capacity, drying time and other factors of the material to be dried. The same type of vacuum dryer has four heating methods: steam, hot water, heat transfer oil, and electric heating. For example, in order to increase the drying capacity, the number of drying racks can be appropriately increased, please submit to our factory in time.
◎The accessories in the vacuum drying system mentioned in the instruction manual can be provided and installed by our factory. Please specify when ordering.
◎The company can provide design, manufacture and installation for the special requirements in the vacuum drying system proposed by users.
◎The company's equipment implements three quality guarantees for users. All accessories are provided for a long time, please rest assured.
