LZG series spiral vibration dryer

product description

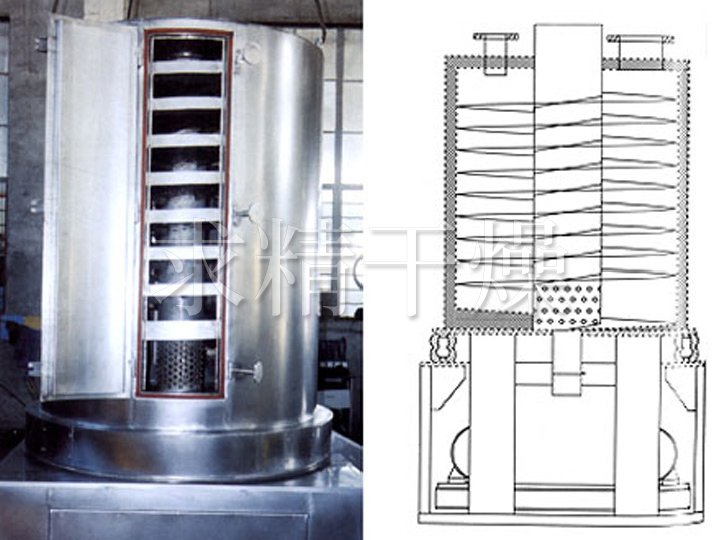

The wet material enters the spiral bed from the top feeding port. Under the action of the circumferential excitation force and gravity, the material jumps from top to bottom along the spiral bed to the bottom; at the same time, clean hot air enters and distributes from the bottom of the spiral bed. After the material on the bed undergoes sufficient heat and mass transfer, it is discharged from the top moisture outlet. So that the material achieves the purpose of drying.

Applications

The drying equipment product is mainly suitable for drying Chinese medicine pills; it can also be used for drying granular, short strip and spherical materials in the chemical, control, food, plastic, building materials, feed and other industries.

main feature

●The hot air flows through the material layer many times and flows in the opposite direction of the material, so that the heat exchange is sufficient and the thermal efficiency is high.
●Compact structure and small footprint.
●The residence time of the material in the bed can be adjusted and the operation is convenient.
●While the material moves in a circular motion from bottom to top along the spiral bed, it also jumps, which increases the contact between the material and the hot air and enhances the drying effect.
●Continuous feeding and discharging are suitable for assembly line operation, and easily reach the "GMP" standard, which can replace traditional box drying.
●There is basically no damage to the surface and shape of the material, which not only ensures the roundness of the pills, but also greatly reduces the crushing rate of the pills.

Technical specifications
