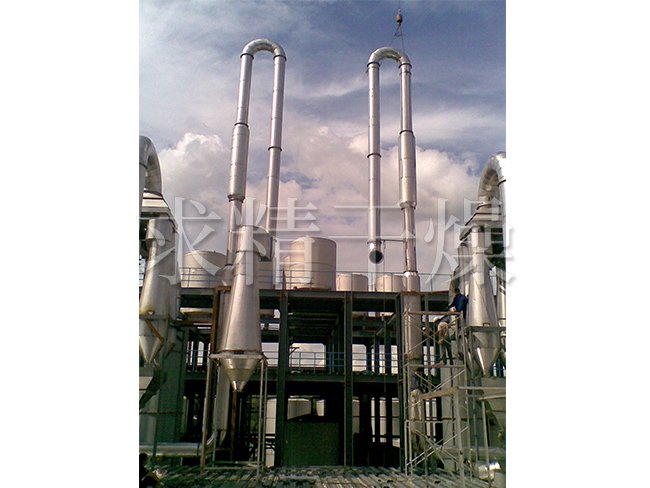

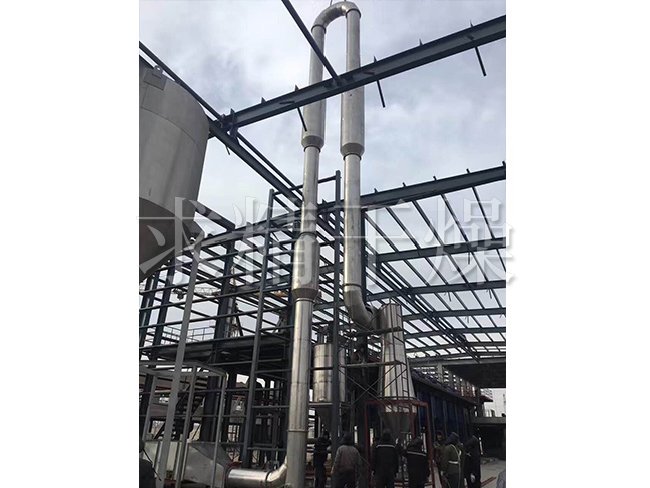

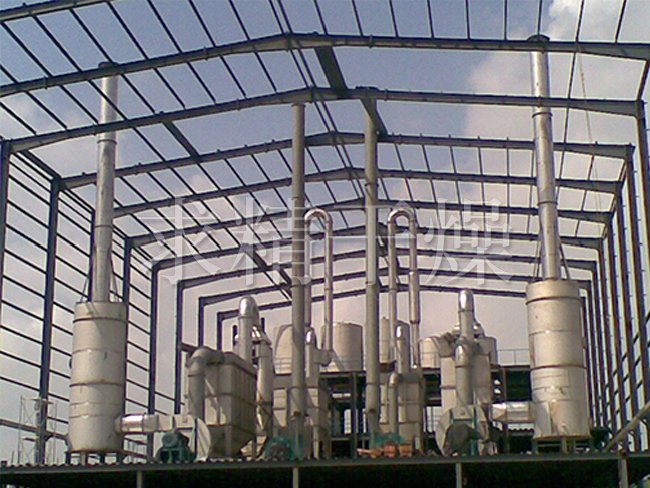

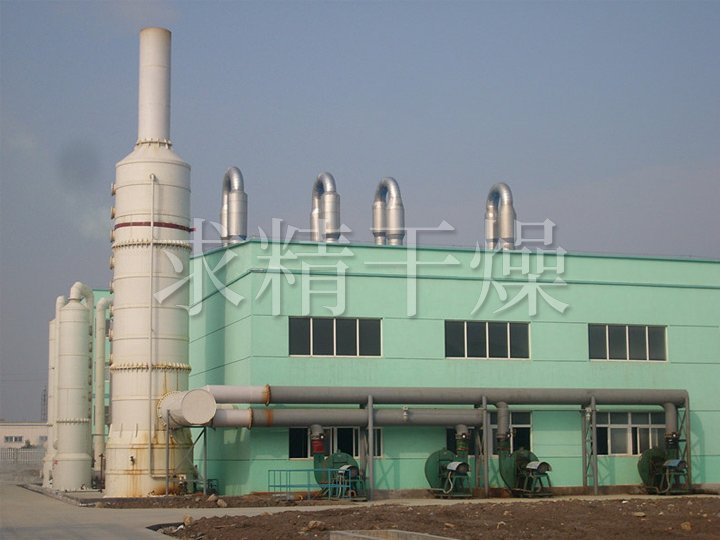

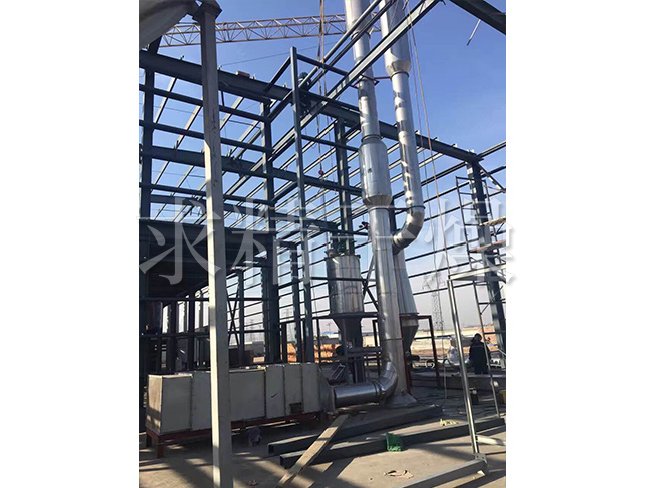

QG, JG, FG series air dryer

Overview:The airflow dryer is a large-scale drying equipment. It uses the principle of instant drying and uses the rapid movement of the heat-carrying air to drive the wet materials and suspend the wet materials in the hot air.

Consulting

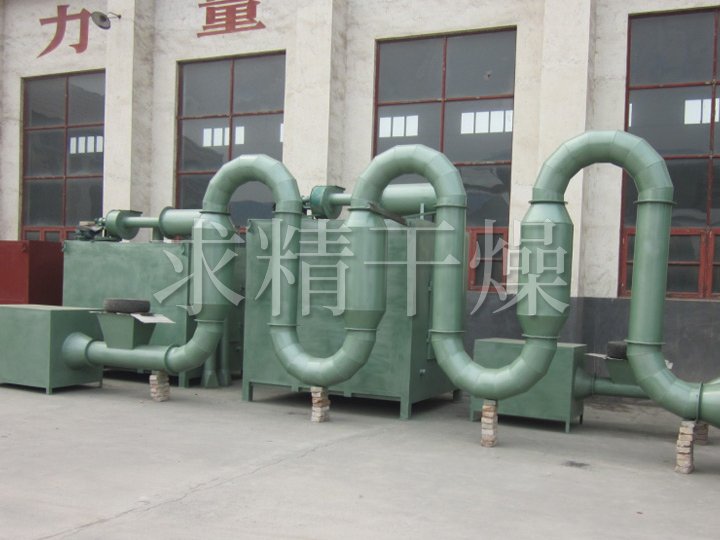

QG series pulse air dryer

product description

QG series pulse air dryer is a large-scale drying equipment. It adopts the principle of instant drying and uses the rapid movement of hot air to drive wet materials and suspend the wet materials in the hot air. This strengthens the entire drying process and improves In addition to the heat and mass transfer rate, the unbound moisture of the materials dried by airflow can be almost completely removed (for example: the water content of starch and other materials is ≤40%, and the finished product can be 13.5%), and the dried materials , There will be no deterioration, and users can achieve higher economic benefits in a short period of time.


Scope of application


The company manufactures QG air drying equipment. After unique design, it has reached a high level. This equipment has high automation, low investment, low energy consumption, less manpower and plant area, and a wide range of general applications. It is an ideal modern equipment .


Features


QG airflow dryer is suitable for drying and dehumidifying powdery materials in pharmaceutical, chemical, food, building materials, plastics and other industries, such as starch, fish meal, salt, distiller’s grains, feed, gluten, plastic resin, mineral powder, coal powder, sugar Drying of various materials such as chloric acid, A·S·C benzoic acid, 2.3·acid, polychloroacetic acid, polypropylene, sodium sulfate, sodium metabisulfite, etc.


Our company consults externally on airflow drying equipment, and designs and manufactures non-shaped airflow dryers.


Technical specifications


Specifications QG-50 QG-100 QG-250 QG-500 QG-1500
Water evaporation kg/h 50 100 250 500 1500
air filter area(m2) 4 6 18 36 60
Number of units 1 1 1 2 2
Replacement time(h) 200(Filter bag) 200(Filter bag) 200(Filter bag) 200(Filter bag) 200(Filter bag)
Heater area(m2) 30 43 186 365 940
Steam consumption(kg) 120 235 450 972 2430
Work pressure(Mpa) 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Ventilator model 9-19-4.5 9-26-4.5 9-19-9 9-19-9 9-26-6.3
Number of units 1 1 1 2 4
Power (kw) 7.5 11 18.5 37 125
Feeder Conveying capacity (kg/h) 150 290 725 1740 4350
way to control Electromagnetic speed regulating motor Electromagnetic speed regulating motor Electromagnetic speed regulating motor Electromagnetic speed regulating motor Electromagnetic speed regulating motor
Power (kw) 0.6 1.1 3 3 7.5
Cyclone separator model CLK-350-400 CLK-500-450 ZF12.5 ZF12.5
effectiveness(%) 98 98 98 98
Quantity 2 2 2 3
Bag filter Quantity 1 1 1  1
Water Consumption 3.6-20.0

JG series air dryer

working principle

JG series airflow dryer can quickly remove water (mainly surface water) from particles and powder materials that are easy to dehydrate. In airflow drying, because the material stays in the dryer for a short time, the quality of the dried product can be better controlled. The enhanced airflow drying in our factory is composed of an intensifier whose speed can be adjusted steplessly on the basic model. After the wet material enters the intensifier through the screw feeder, it is fully mixed with the hot air flow, and is crushed and pushed forward by the rapidly rotating blade. The material is broken into fine particles, and moves to the outlet while drying, and then enters the drying tube under the suction of wind to further uniformly dry. The wet and heavy particles that cannot be attracted by the wind continue to be crushed and dried until they can be sucked into the drying tube by the wind.


The main purpose


This machine is especially suitable for materials with relatively large moisture content, wet materials in paste form, materials that cannot be dried by other air drying methods, such as white carbon black, copolymers of vinyl acetate and vinyl chloride, acetate fiber flocs, catalysts, CMC , CT-1 resin, forging plaster, electrolytic manganese dioxide, ammonium anthraquinone sulfonate, fluorspar, diatomaceous earth, silica gel catalyst, bone meal, high territory, potassium perchlorate sulfonium drugs, synthetic resin, active gluten, active White clay, chemical filter cake, rutile white powder, sebacic acid, copper sulfate, aluminum sulfate, sodium sulfate, calcium phosphate, phosphated starch, dyes, calcium citrate, coal slime, dough-shaped bread, rice bran, clay , Clay cement, urea, bentonite, spherical clay, aluminum hydroxide, barium hydroxide, calcium lactate, food, washed high territory, cyanuric acid, gypsum slurry, lime, biological products, carbon black, calcium carbonate slurry, sludge Residues, organic chemicals, aluminum stearate, iron oxide, organic fuels, corn gluten feed, wet mud, mica powder, pharmaceuticals, pigments, potassium dichromate pulp, vinasse, etc.

Technical specifications


model Evaporated moisture kg/h
(Calculated by surface moisture)
Installed power kw Area m2 Height m
JG 50 50 10 20 9
JG 100 100 20 32 11
JG 200* 200 31 40 11
JG 250 250 32 64 13
JG 500* 500 54 96 13
JG 1000* 1000 135 120 15
JG 1500* 1500 175 200 16
Note: Those with * are secondary drying, installed power, and floor space are calculated by steam heating.

FG series air dryer

working principle

The working principle of FG series airflow dryer is to complete the drying of wet materials in two steps. The raw materials are first dried by a mixture of secondary drying tail gas and supplementary hot air. The used high temperature and low humidity tail gas is discharged out of the machine, and the dried semi-finished products are dried by fresh hot air with secondary negative pressure. The finished product after drying is measured and packaged. The used high-temperature and low-humidity tail gas is used as a primary drying, so as to complete a good cycle drying process. The supplementary hot air volume can be adjusted at will according to the needs, so the machine has a wide applicability.


Adapt to materials


This equipment is widely used for drying powder and granular materials in food, chemical, pharmaceutical, building materials and other industries. Products that have been dried with this series include starch, glucose, fish powder, sugar, sugar, wine tank, feed, gluten, plastic resin, coal powder, dyes, etc.


Technical specifications

model Evaporated water (kg/h) Installed power  kw Area m2 Thermal efficiency (%)
FG0.25 113 11 3.5x2.5 >60
FG0.5 225 18.5  7x5 >60
FG0.9 450 30 7x6.5 >60
FG1.5 675 50 8x7 >60
FG2.0 900 75 11x7  >60
FG2.5 1125 90 12x8  >60
FG3.0 1150 110 14x10 >60
FG3.5 1491 110 14x10 >60
