product description

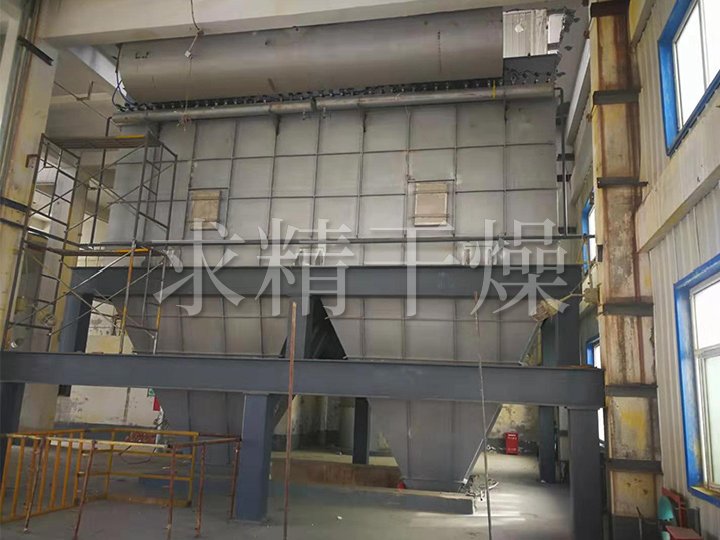

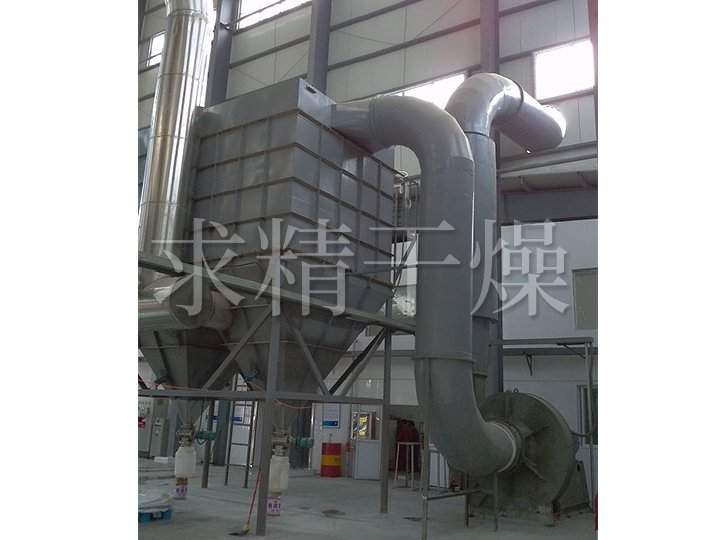

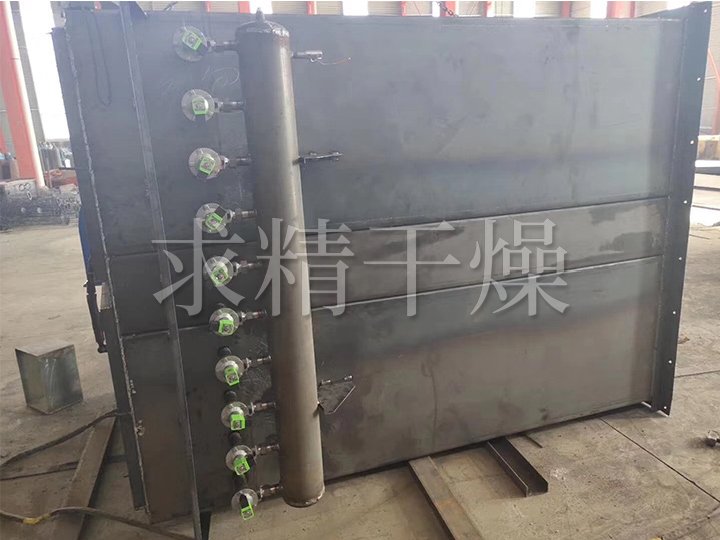

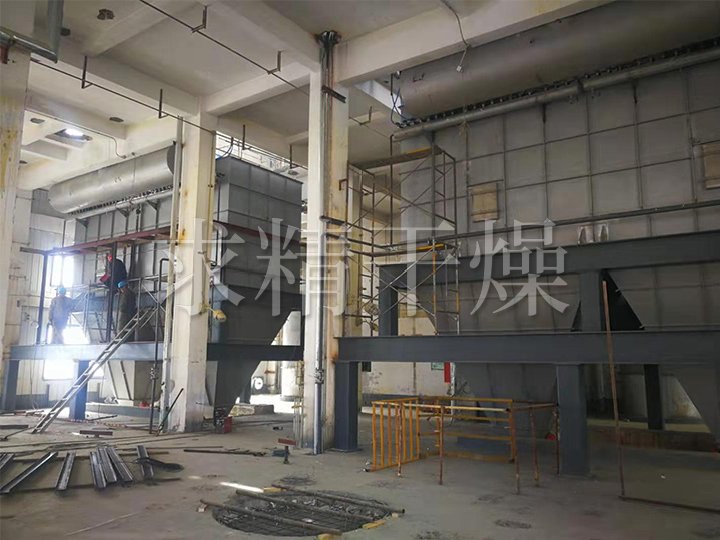

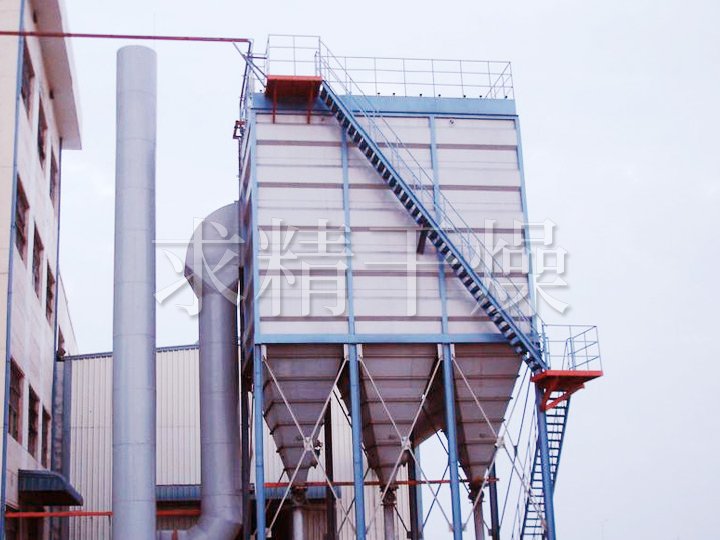

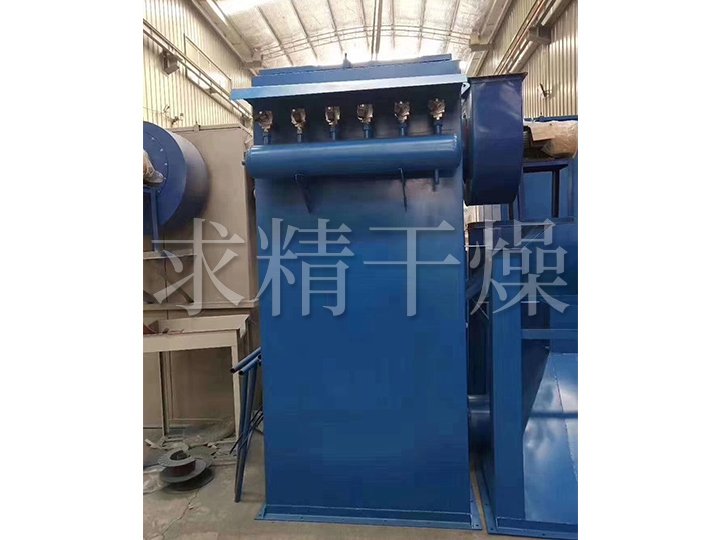

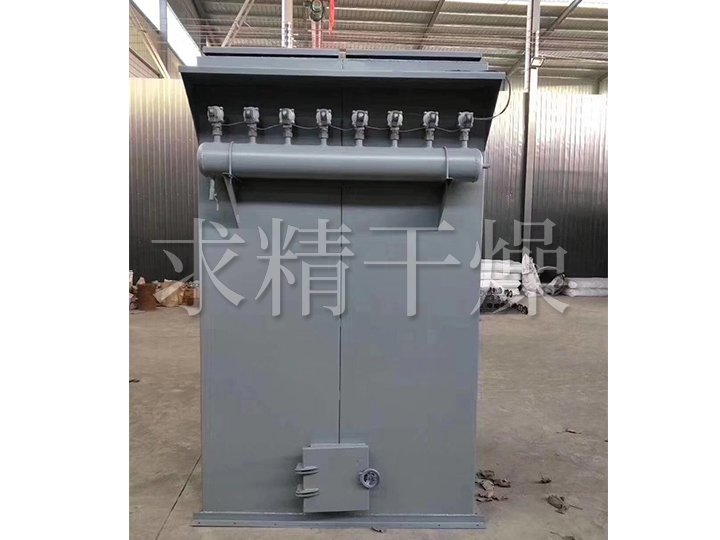

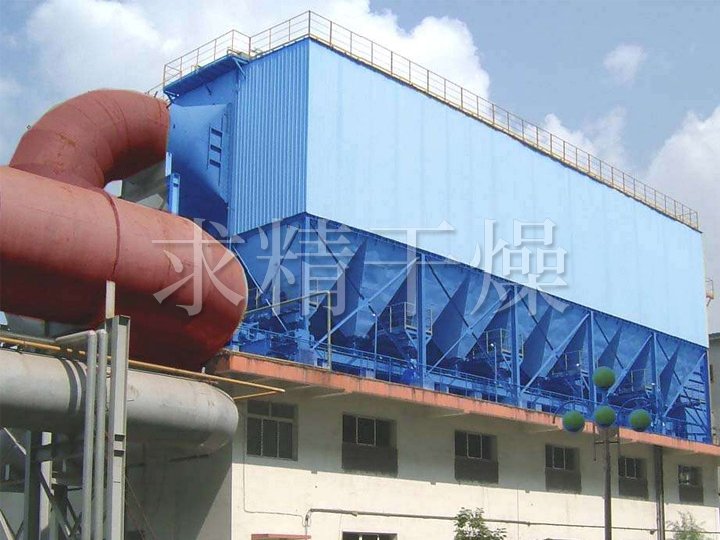

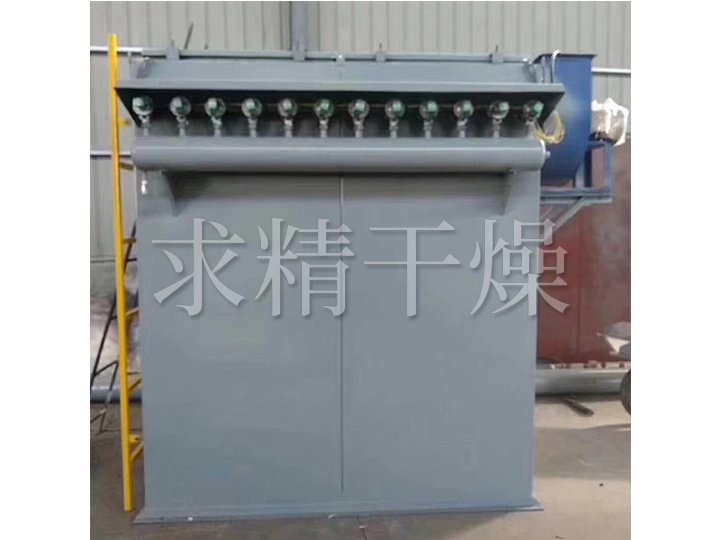

MF-II square pulse bag filter is modified on the basis of MF-I type.
Performance characteristics
In addition to the characteristics of Type I dust removal efficiency, large air volume, stable performance, and convenient operation and maintenance, it also has the characteristics of better use than Type I, less dust accumulation, and wide application range.
Adapt to materials
Widely suitable for ventilation, dust removal and dust recovery in food, feed, metallurgy, chemical, building materials, medicine and other industries.
Technical specifications
| parameter | model | ||||||
| MF48 | MF60 | MF72 | MF84 | MF96 | MF108 | MF120 | |
| Filter area（m2） | 36.2 | 45.2 | 54.3 | 63.3 | 72.4 | 81.4 | 90.5 |
| Number of filter bags (only) | 48 | 60 | 72 | 84 | 96 | 108 | 120 |
| Filter air volume (m3/h) | 6510-8680 | 8130-10840 | 9770-13000 | 11400-1520 | 13000-17370 | 14650-19530 | 16290-21700 |
| Number of solenoid valves (only) | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Power (kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 |
| Filter bag specifications (mm) | 120×2000 | ||||||
| Filter wind speed (m/min) | 3-4 | ||||||
| Air leakage rate (%) | ≤5 | ||||||
| Injection pressure (Mpa) | ＞0.4-0.6 | ||||||
| Equipment resistance (Pa) | ＜1200 | ||||||
| Dust removal efficiency (%) | ≥99.9(Select the suitable filter material according to the dust characteristics) | ||||||
Technical specifications
| parameter |
Technical specifications |
||||||
| MF48 | MF60 | MF72 | MF84 | MF96 | MF108 | MF120 | |
| A | 3530 | 3530 | 3530 | 3530 | 3530 | 3530 | 3530 |
| B | 3287 | 3287 | 3287 | 3287 | 3287 | 3287 | 3287 |
| C | 2552 | 2552 | 2552 | 2552 | 2552 | 2552 | 2552 |
| D | 1160 | 2260 | 1160 | 1160 | 1160 | 1160 | 1160 |
| E | 1350 | 1650 | 1950 | 2250 | 1350 | 2850 | 3150 |
| F | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| G | 635 | 635 | 635 | 635 | 635 | 635 | 635 |
| H | 325 | 475 | 625 | 775 | 925 | 1075 | 1225 |
| I | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| J | 790 | 790 | 790 | 790 | 850 | 850 | 850 |
| K | 824 | 824 | 824 | 824 | 824 | 824 | 824 |
| M×N | 400×500 | 500×500 | 600×500 | 700×600 | 700×600 | 800×600 | 800×600 |
| P×Q | 432×530 | 530×530 | 630×530 | 728×630 | 728×630 | 832×630 | 832×630 |
| R×S | 1050×1050 | 1350×1050 | 1650×1050 | 1950×1050 | 2250×1050 | 2250×1050 | 2850×1050 |
