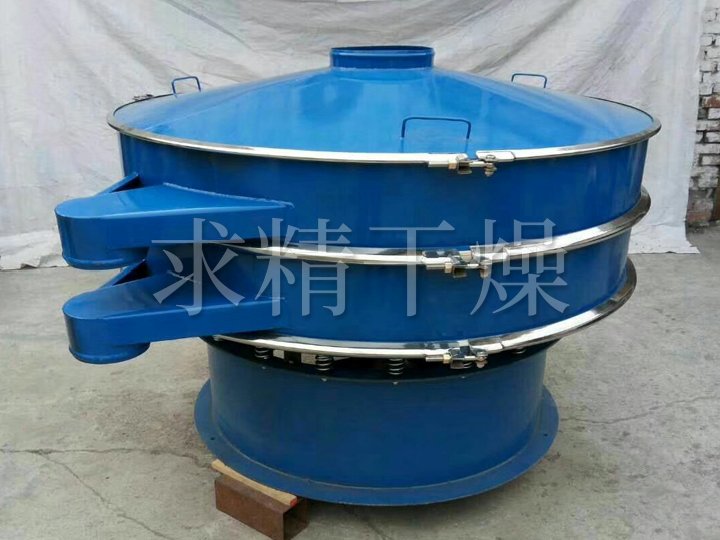

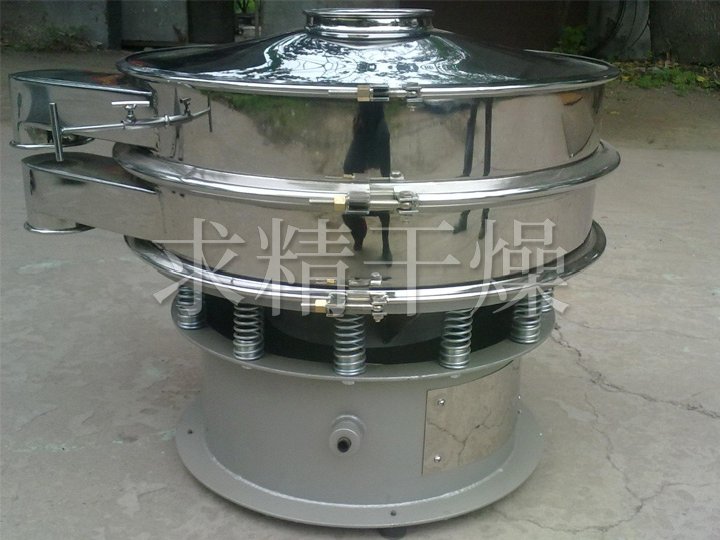

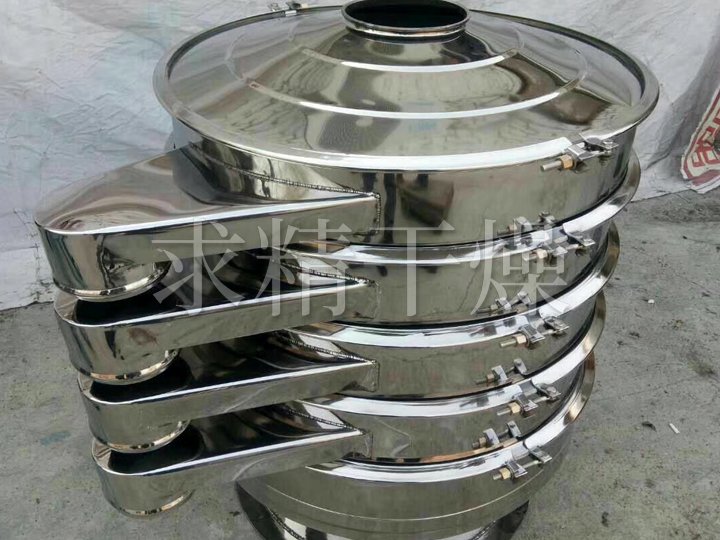

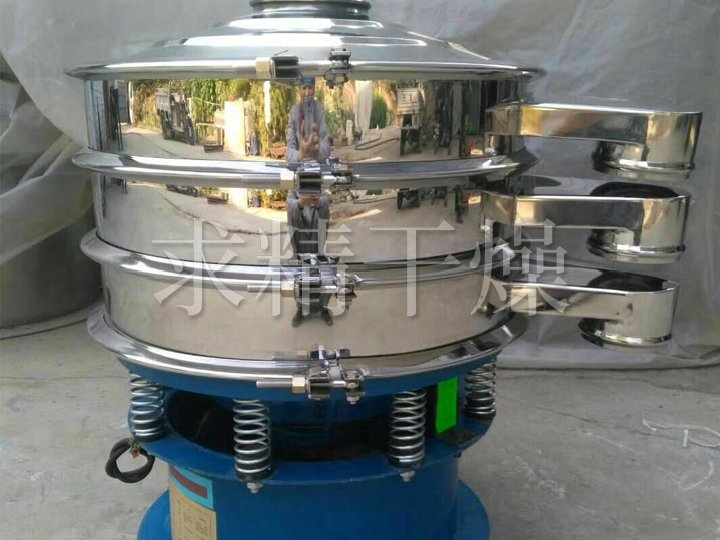

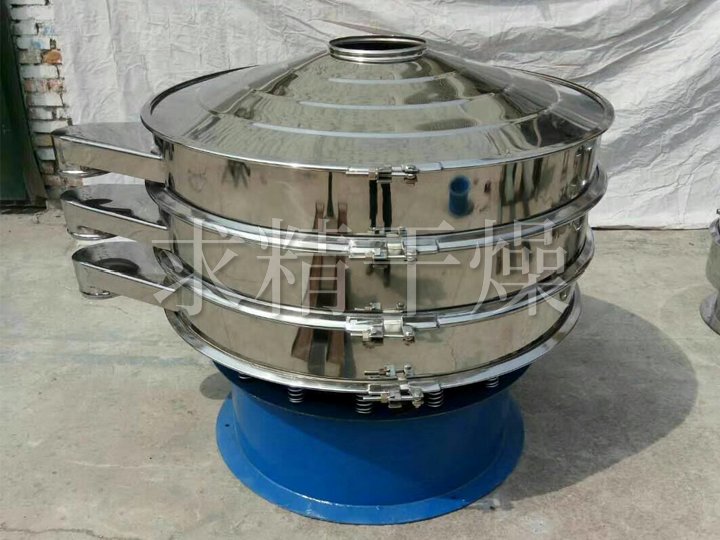

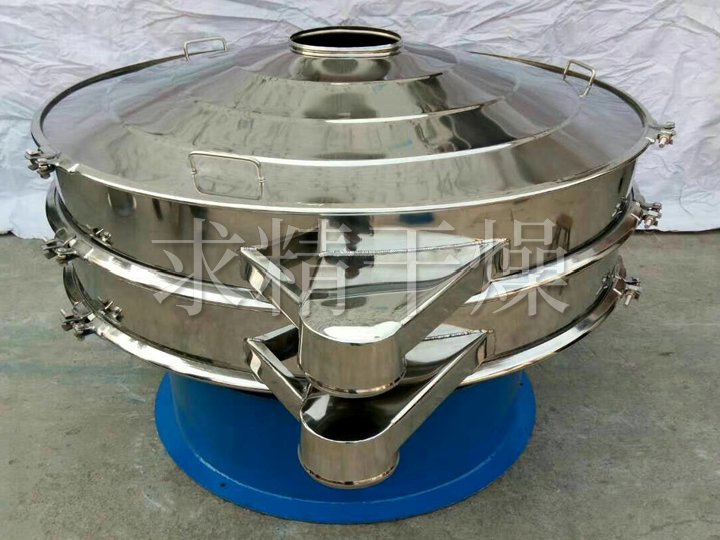

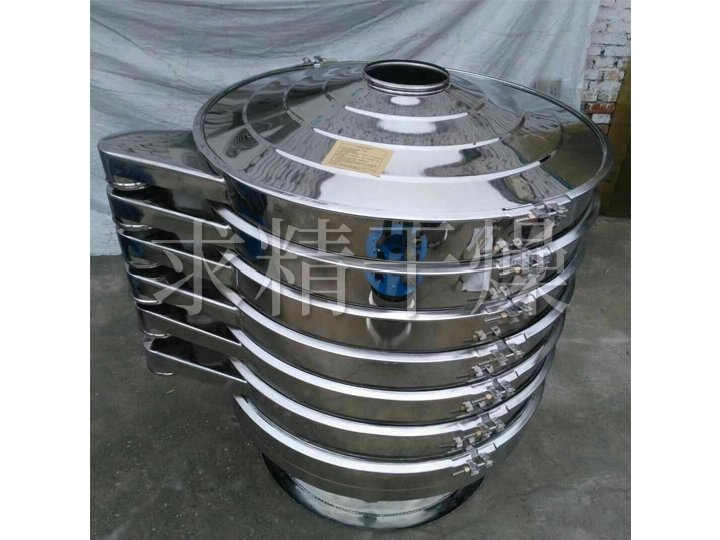

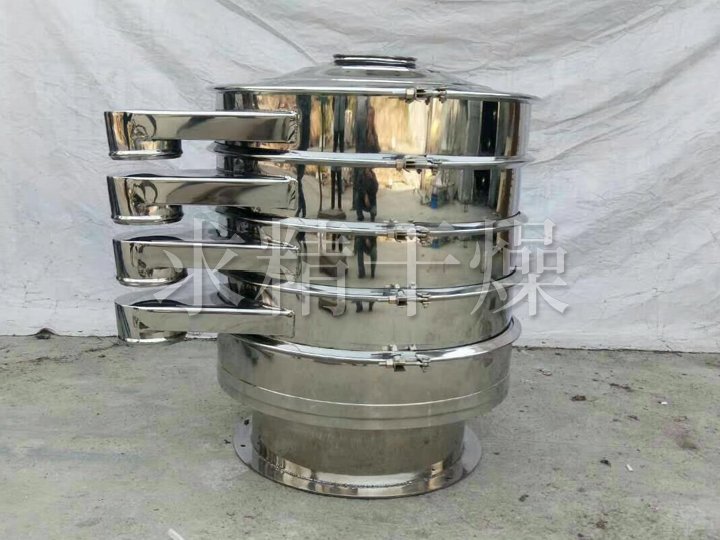

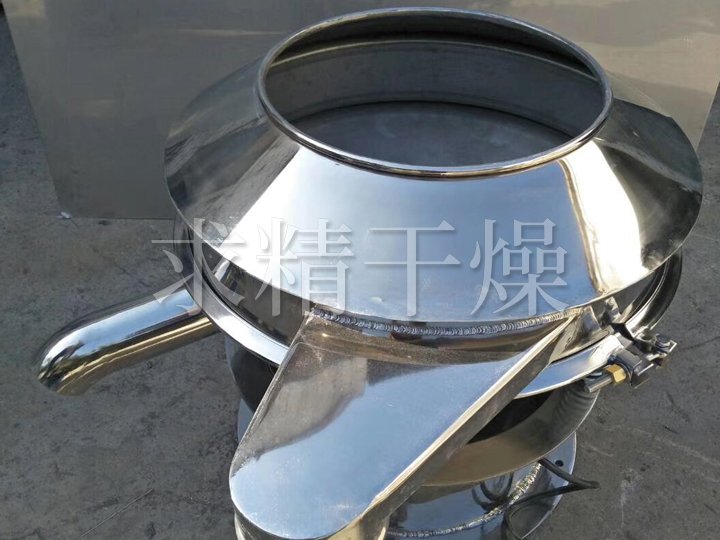

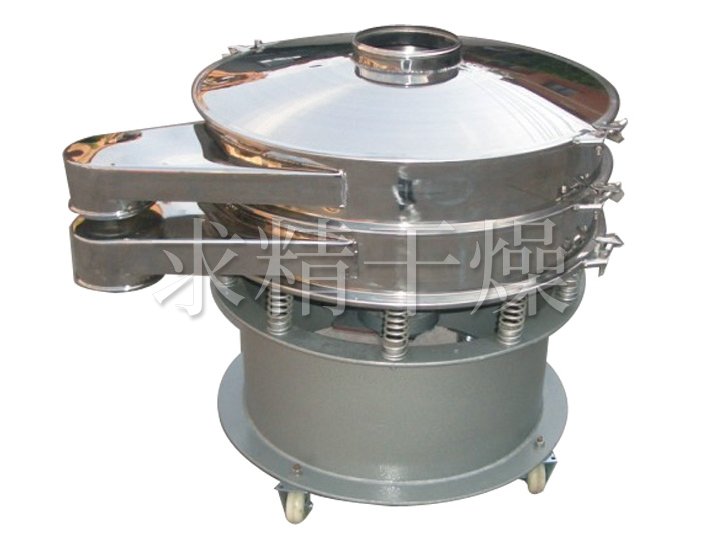

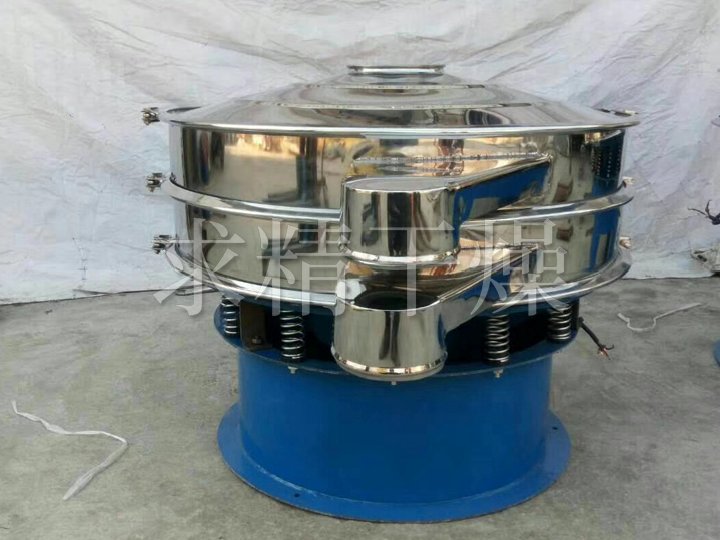

ZS series circular vibrating screen

Overview:OverviewThis machine is composed of a hopper, an oscillation chamber, a coupling, and a motor. The vibration chamber is composed of eccentric wheel, rubber software, main shaft, bearing and so on. The adjustable eccentric weight is transmitted to the …

Consulting

Overview
This machine is composed of a hopper, an oscillation chamber, a coupling, and a motor. The vibration chamber is composed of eccentric wheel, rubber software, main shaft, bearing and so on. The adjustable eccentric weight is transmitted to the centerline of the main shaft by the motor drive, generating centrifugal force in an unbalanced state, changing the strength of the material, and forming an orbital vortex in the screen. The amplitude of the hammer regulator can be adjusted according to different materials and screens. The whole machine has compact structure, small size, no dust, low noise, high quality, low energy consumption and convenient mobile maintenance.


Technical specifications

model ZS-350 ZS-515 ZS-650 ZS-800 ZS-1000 ZS-1500
Production capacity(kg/h) 40-500 60-600 80-800 150-1200 300-2000 350-2800
Number of mesh 12-1200 12-200 12-200 12-200 5-325 5-325
Motor Power(kw) 0.55 0.55 0.55 0.75 1.5 2.2
Spindle speed(rpm) 1380 1370 1370 1500 1500 1500
Dimensions(mm) 540×540×1060 710×710×1290 880×880×1350 1000×1000×1000 1100×1100×1200 1600×1600×1200
net weight(kg) 100 180 250 300 350 400
