Overview：Features and usesThis machine (group) is suitable for the crushing of brittle materials in the pharmaceutical, chemical, food, pesticide and other industries. It is a new generation of crushing equipment that integrates crushing and dust collection, a…
ConsultingFeatures and uses

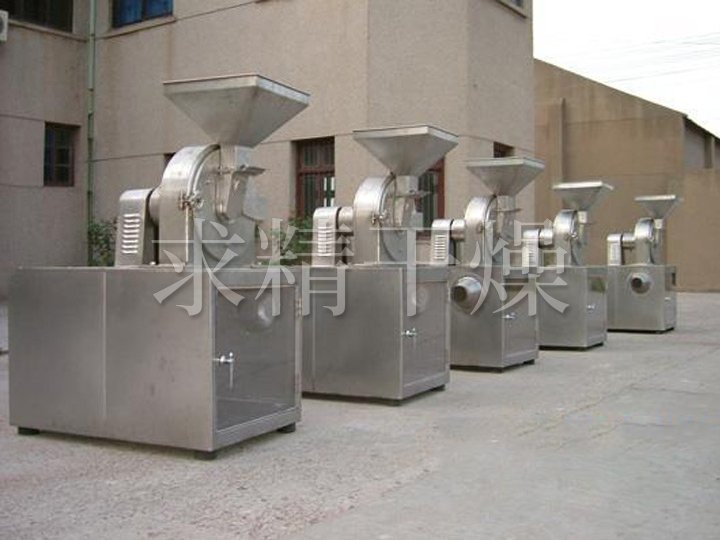

This machine (group) is suitable for the crushing of brittle materials in the pharmaceutical, chemical, food, pesticide and other industries. It is a new generation of crushing equipment that integrates crushing and dust collection, and is extremely versatile.
Structure and principle
This unit uses the relative movement between the movable toothed disk and the fixed toothed disk to make the materials impact and rub against each other by the teeth; the impact is crushed. The crushed material will automatically enter the predator bag under the action of the rotating centrifugal force, and the dust will be recovered by the dust collection box through the cloth bag filtration. The machine is designed according to the "GMP" standard and is all made of stainless steel. There is no dust during the production process. And can improve the utilization rate of materials and reduce business costs.
Technical specifications
| model | unit | 20B/20B unit | 30B/30B unit | 40B/40B unit | 60B/60B unit |
| Production capacity | kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
| Spindle speed | r/min | 4500 | 3800 | 3400 | 2800 |
| Feed size | mm | 6 | 10 | 12 | 15 |
| Crushing fineness | mesh | 60-150 | 60-120 | 60-120 | 60-120 |
| Crushing motor power | kw | 4 | 5.5 | 11 | 15 |
| Vacuum fan power | kw | 1.5 | 1.5 | 1.5 | 2.2 |
| weight | kg | 250 | 320 | 550 | 680 |
| Dimensions（L×W×H） | mm | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
| Dimensions（unit）（L×W×H） | mm | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×1000×1750 |
