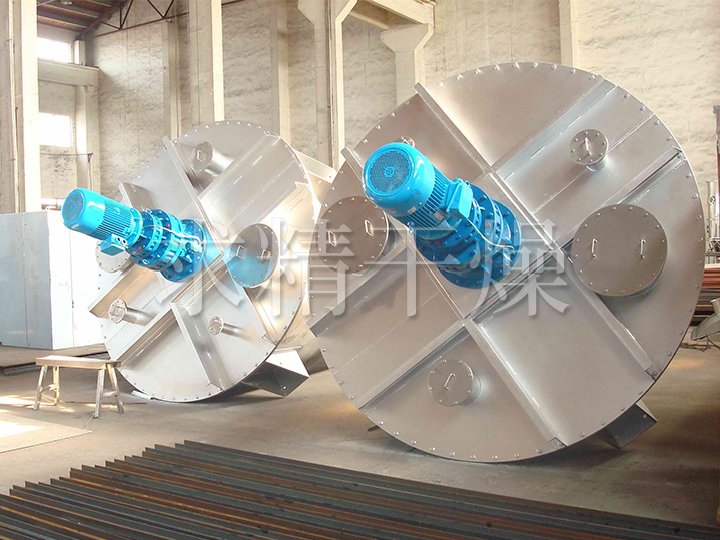

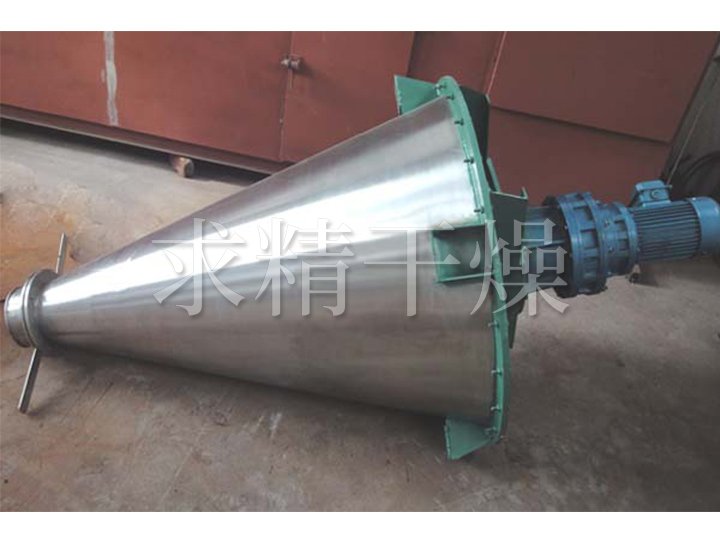

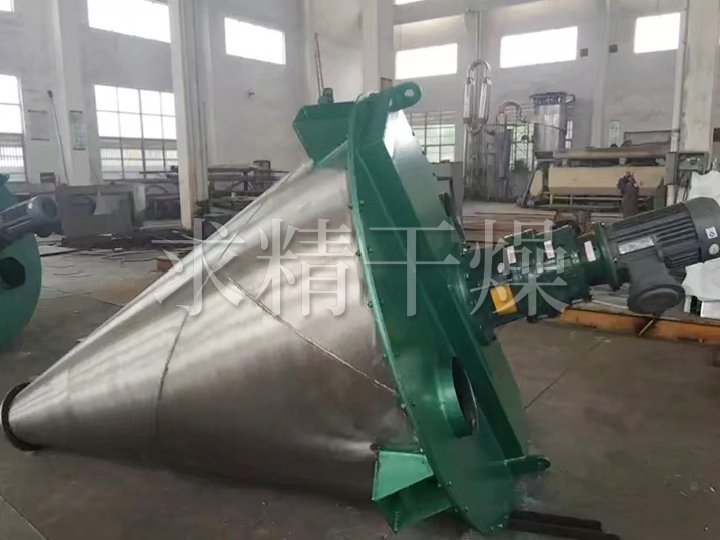

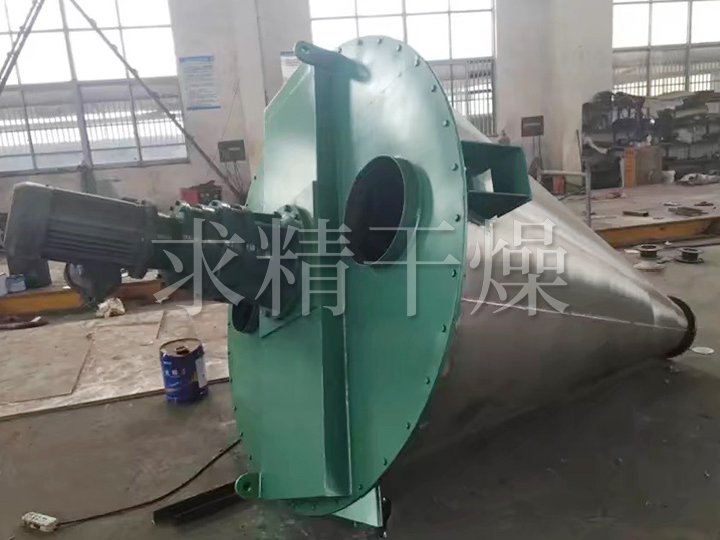

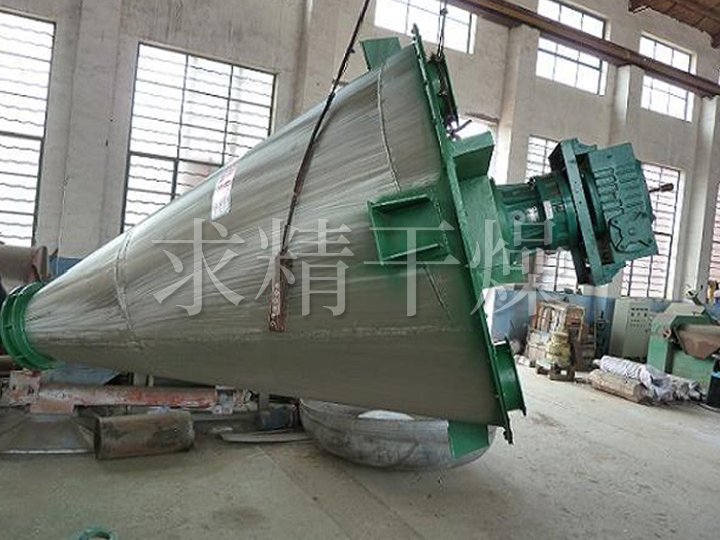

DSH series double spiral cone mixer

product description

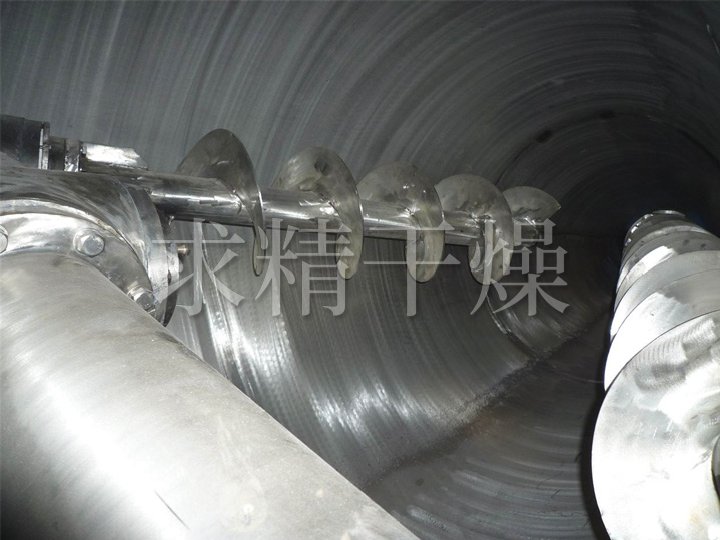

A compound movement of the material in the cone is caused by the rotation and rotation of the spiral, and there are four main forms of movement:

1. The spiral revolves along the wall to make the material move in a circle along the cone wall;
2. The spiral rotation makes the material spiral upward from the bottom of the cone;
3. The combined movement of the screw's rotation and rotation causes a part of the material to be absorbed into the spiral cylindrical surface and the centrifugal force of the spiral rotation causes a part of the material in the spiral cylindrical surface to be discharged radially to the cone;
4. The rising material falls by its own gravity. The four movements produce convection, shear, and diffusion in the mixer to achieve the purpose of rapid and uniform mixing.

Features

◎Flying knife can be installed, spraying and atomizing assembly can be installed to meet special process requirements.
◎The discharge valve has two modes: manual and pneumatic.
◎Special materials can increase motor power (heavy duty).

Applications

Used in chemical, pharmaceutical, pesticide, dye, petroleum, metallurgy, building materials and other powder and powder (solid-solid), powder and liquid (solid-liquid), liquid and liquid (liquid-liquid) mixing, reaction, and drying ,cool down.

Technical specifications
